600KG ,800KG , 1300KG for optional

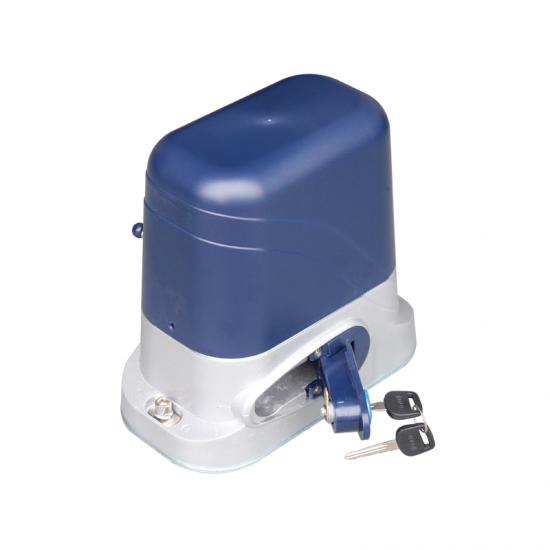

When power failure , use a allen key to release clutch,and push the door manually.
Gate auto stop and re-open when an obstacle is encountered
Nice desin,heavy duty working with copper motor ,copper worm gear,
Control board have function for Pedestrian mode and condominium mode
Item No.:
JJ-PYMPayment:
TT/paypalProduct origin:
ChinaShipping port:

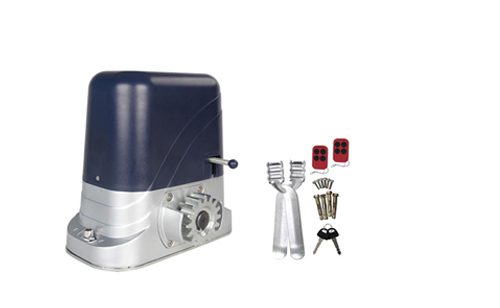

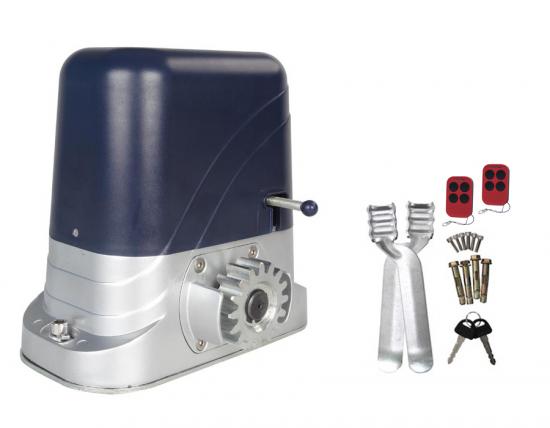

xiamen/shenzhenStandard kit included:
1*motor
1*built in control panel
2*limit block /magnets
1*metal baseplate
1 set hardware accessories
1 user manual
Technical data :
| Item | PYM A2201 | PYM-A2202 | PYM-A2203 |
| Rated Voltage |
220V±10%/110V±10 % 50HZ/60HZ |
220V±10%/110V±10% 50HZ/60HZ |
220V±10%/110V±10% 50HZ/60HZ |
| Electric motor | 220VAC /110VAC | 220VAC /110VAC | 220VAC /110VAC |
| Motor color | Blue/Grey/ Black | ||
| Rated Motor Power | 250W | 280W | 380W |
| Gear Modulus | M=4 | M=4 | M=4 |
| Max Loading Weight | 600KG | 800KG | 1300KG |
| Open/Close Speed | 12m/min | 12m/min | 12m/min |
| Output Speed | 50r/min±10% | 50r/min±10% | 50r/min±10% |
| Limit Switch Type | Magnetic/spring | Magnetic/spring | Magnetic/spring |
| Max.Pull Force | 1100N | 1100N | 1100N |
| Noise | ≤55dBa | ≤55dBa | ≤55dBa |
| Working Temperature | -20°C ~ +55°C | -20°C ~ +55°C | -20°C ~ +55°C |
Function:
Totally integrated electrical mechanical system (excludes racks)

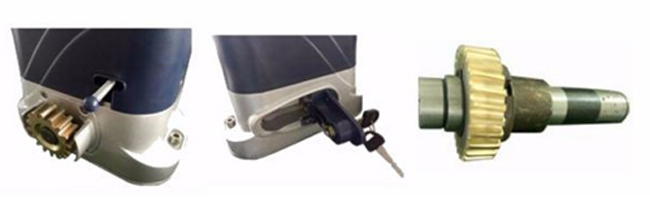

Manual release key in case of power supply failure
All metal gears make it durable and long lasting
Gate auto stop and re-open when an obstacle is encountered
Reliable magnetic and spring limit optional
Auto close time can be adjusted from approximately
Nice desin,heavy duty working with copper motor (many supplier use allumium motor ), copper worm gear,
600KG ,800KG , 1300KG loading weight for your optional

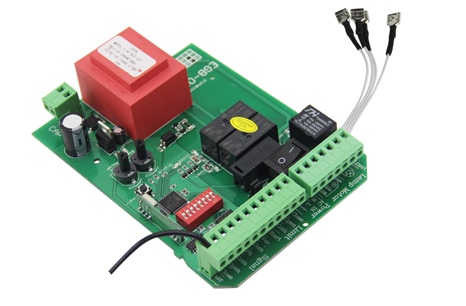

Technial data :
|
Model
|
EGB-02 |
| Voltage | 220V/110V |
| Modulation | ASK |
| Frequency | 433.92Mhz |
| Board Memory | 50 pcs remote control |
| Output Voltage | AC 24V |
Feature:
Availble to set pedestrian mode and condominium mode
A button at control for switch on /off power
Single /Three transmitter button control optionals
Adjustable resistance sensitivity
Alarm lamp interface
Adjust auto-closing time
Terminal availble for loop detector ,photocell,push button, keypad , access control equipment etc.
