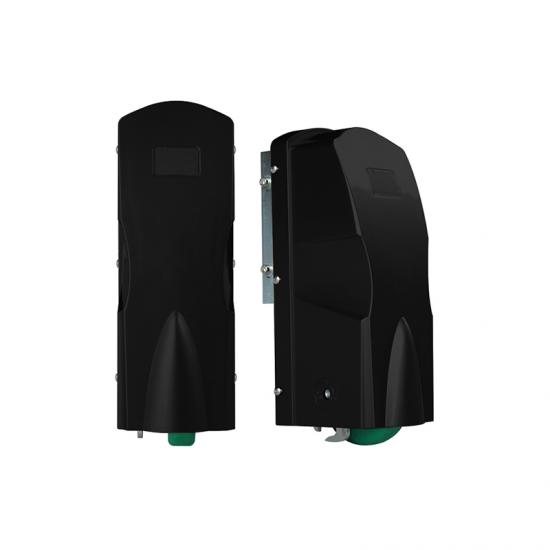

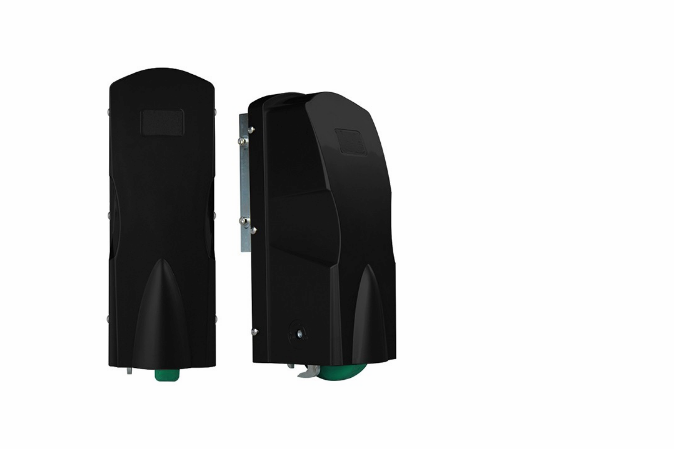

Automatic 400KG Underground Swing Gate in Nepal Opener Motor

Single or dual arm motor availble,Each arm can open and close gate up to 3m or 300kg.

DC 24V voltage Swing Door Opener,Availbe for back up battery power Manual release in case of power off Soft start and slow stop door operator 200KG max single leaf gate weight,2.5metre max single leaf gate width Adjustable opening/closing interval time of double gate leaves. Separately adjust the force of double gate leaves.

This model swing gate operator features: 300mm/400mm/600mm run travel for optional Worm gear provides durability and silence in motor operation. Manual release key in case of power supply failure Stop working when gate meets obstacle. Soft start and soft stop Swing Gate in Nepal Motor,avoid some accidents Copper motor and gear worm for stable performance and longer working life

This is light weight swing gate opener operator of 300kg,double and signle motor can be used.  DC 24V voltage,compatible with back up power supply. Manual release with secure customized key in case of power failure. Max single gate weight 150kg,max single leaf gate width 2metre Soft start and slow stop. Adjustable opening/closing interval time of double gate leaves.

The appearance of the motor body adopts anti-UV material which has outward retention in resisting any tough environments. Anti-theft clutch design can switch the operation to manual control easily when power failure. Soft start and slow stop Gate Opener Door Operator. Worm gear provides durability and silence in motor operation. Powerful Copper made motor core and gear worm for stable performance and longer working life

300mm/400mm/600mm run travel swing Gate Motor for optional Worm gear provides durability and silence in motor operation. Manual release key in case of power supply failure Stop working when gate meets obstacle. Soft start and soft stop ,avoid some accidents Copper motor and gear worm for stable performance and longer working life

Crank-Type Swing Outdoor Automatic Door Opener Operator Tech Deta: Model PKM-B01-24V Voltage 220V Frequency 50/60HZ Power 160W 1. Specially designed for residential unit doors and pedestrian access doors. 2. Automate the door closer, make the doors open and close themselves. 3. Adjustable for the opening and closing speed/open angle/standing time and etc. 4. No noise, faster and more convenient experience for passager. 5. Waterproof design, adapt to a variety of application environment. 6. Perfectly working with any access control system and electric magnetic lock and bolt lock and etc.

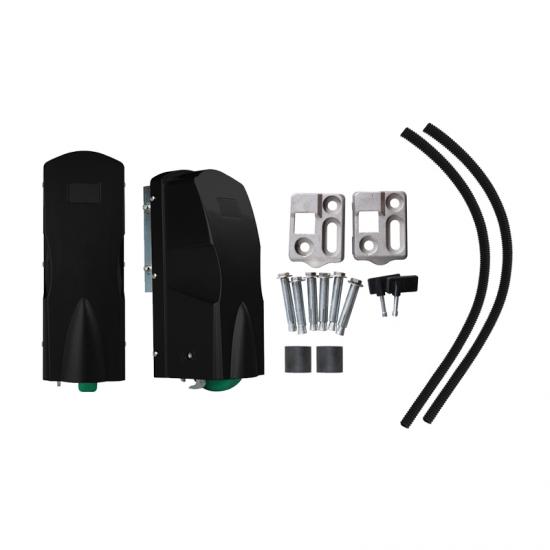

New design automatic arm actuator swing gate opener operator One set include: 2 x DC gate motor that are pre-wired with motor cables 2 x Override spanners 2 x Remote controls 1 x Control panel 2 x Post mounting bracket 2 x Gate mounting bracket 1 x Rubber Gate Stop 1 x Instruction manual Features: 1.Worm gear provides durability and silence in motor operation. 2.Clutch device for power failure,use a special key release clutch,operate the gate manually. 3.Stop working when gate meets obstacle. 4.Soft start and soft stop ,avoid some accidents 5.Copper motor and gear worm for stable performance and longer working life 6.Adjustable opening/closing interval between master and slave gate. 7.Adjusting residence sensitivity 8.24VDC Swing gate opener can work for solar power system and back up battery. Rotaed motor power 60W Max single leaf weight  300kg-350kg Motor power 24VDC  Max single leaf length 2.5m/3.5m Working speed 2.4cm/s Run travel 300mm/400mm Protect classs  IP44 Working termperature -25°C to +55°C
