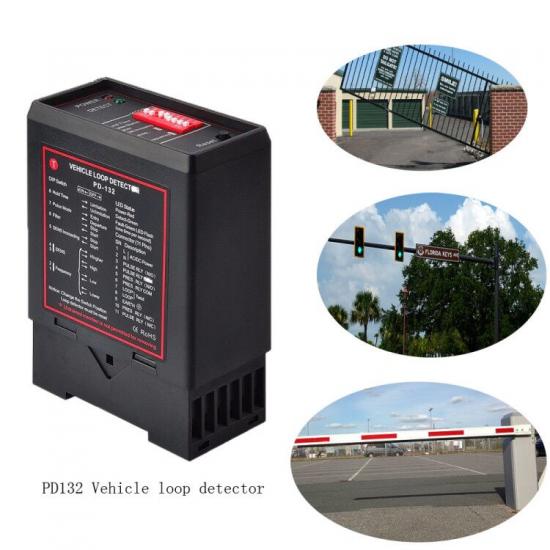

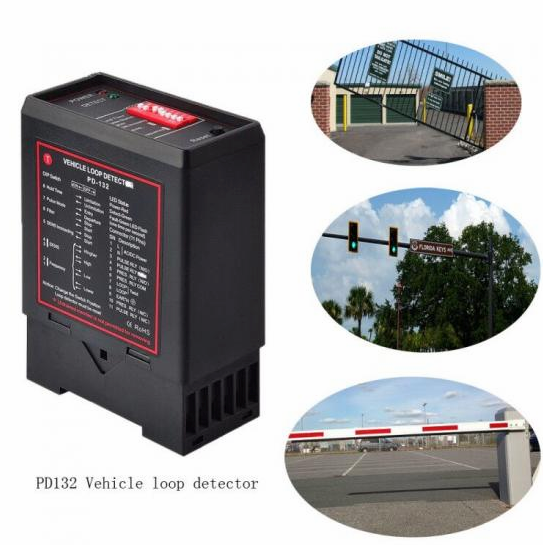

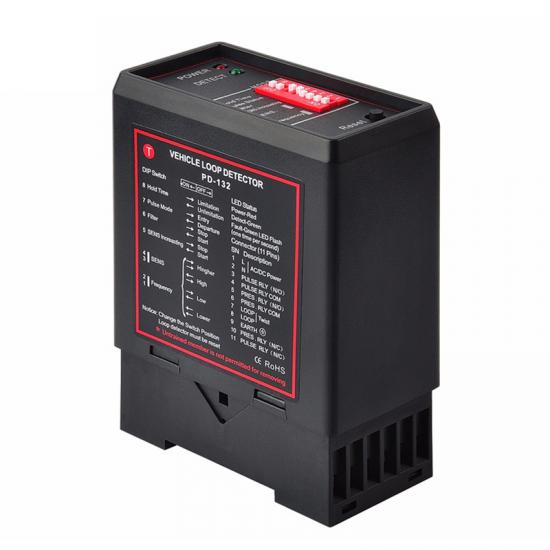

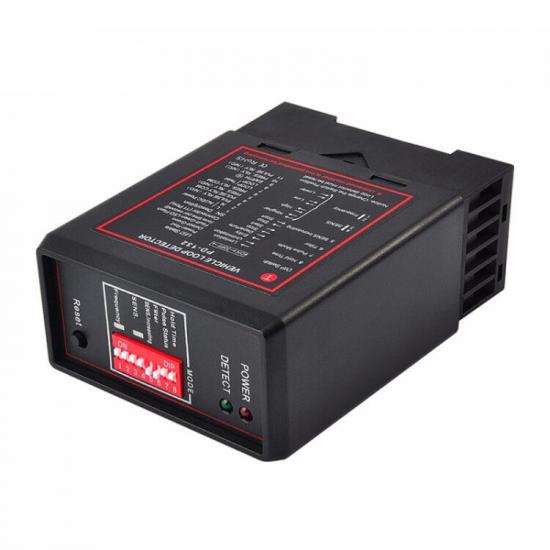

Automatic Alarm Security Vehicle Loop Detector

Automatic Alarm Security Vehicle Loop Detector

Technial data:

Model Number: DG-01

NAME: Loop detector

Power Supply:: 85-240VAC/12-24VADC

Warranty: 1year

Voltage tolerance AC: +10% / -15%

Voltage tolerance DC: ±15%

Type: single/double way for choice

Operating temperature: -20°C to +65°C

Sensitivity: 4 levels adjustable

Relative Humidity: <95%

USAGE: open gate, match with barrier gate, gate opener etc

Function of loop detctor

Reset Switch : The reset switch enables the detector to be manually resetduring registering and testing and it is a process of system recovery;

Selectable Pulse Time : This feature sets the length of time that the pulse relay will be lasting for 1 Second or 0.5 Seconds ;

Pulse Relay Selection : The Pulse Relay may be configuredto activate on detection of a vehicle or when the vehicle leaves the loop;

Sensitivity Reinforcement : This feature sets the undetecting level to a maximum sensitivity to prevent failing to detect vehicles as big trucks;

Switch Sensibility Adjustable : 4 sensitivity setting are available on the switches to change sensitivity ;

Switch Frequency Adjustable : 4 frequency settings are available to prevent signal interference with neighboring loops;

Filtering Option : This option is used to provide a delay between detection of the vehicle and switching of the output relay.This relay is normally used to prevent false detection of small or fast moving objects ;

Permanent Presence Option : This feature ensures the detection of the vehicle will be maintained
