This is the cheapest model with heavy duty system
600KG max loading weight
Manual relese keys in case of emergency or power failure.
Resistance sensitivity and auto-closing delay time adjustable.
Stop/reverse in case if obstruction during gate opening/closing.
Reliable magnetic limit supplied.
Availble to set pedestrian mode and condominium mode
Item No.:
PYM-C2201-CXPayment:
TT/paypalProduct origin:
ChinaGoods_stock:
1000Shipping port:

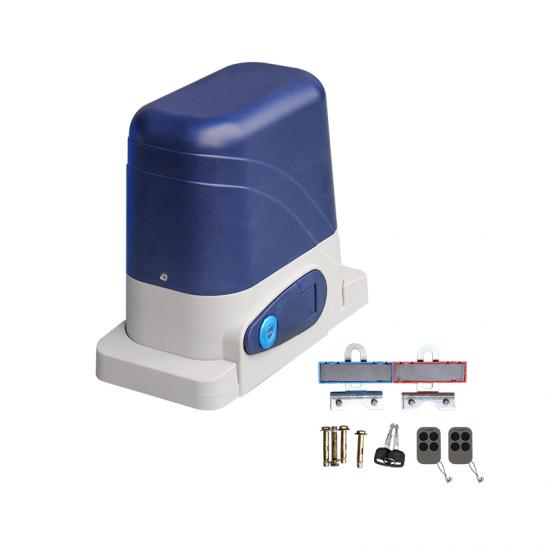

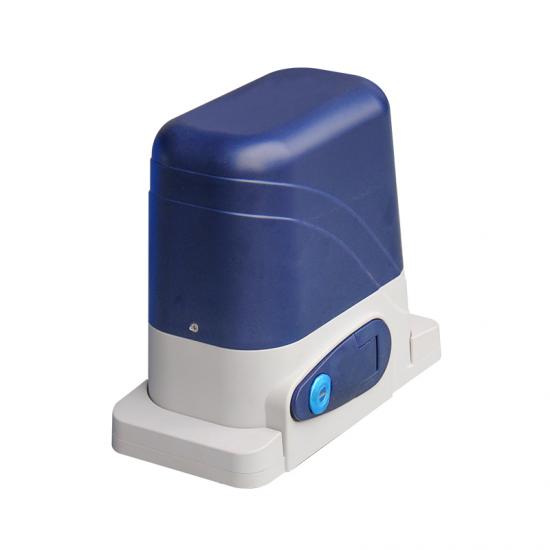

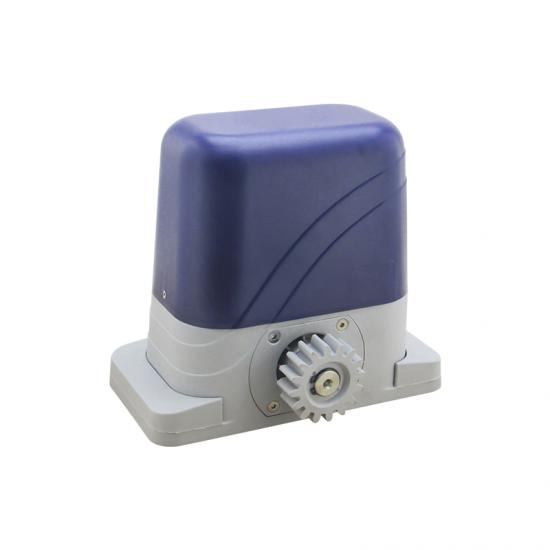

shenzhen/xiamenAutomatic Gate Motor Sliding Gate Door Operator
| Model No | PYM-C2201-CX |
| Rated voltage | 220VAC/110VAC |
| Electronic motor | 220VAC/110VAC |
| Rated motor power | 200W |
| Gear modulus | M=4 |
| Max loading weight | 600KG |
| Open/close speed | 12m/min |
| Output speed | 50r/min |
| Output torque(N.m) | 14N.m |
| Limit switch type | Magnetic |
| Max pull force | 1100N |
| Working temperature |
-20°C~+55°C |
Function:
Totally integrated electrical mechanical system (excludes racks)
Manual release key in case of power supply failure
Gate auto stop and re-open when an obstacle is encountered
Reliable magnetic limit optional
Auto close time can be adjusted from approximately
Control board
|
Model
|
EGB-02 |
| Voltage | 220V/110V |
| Modulation | ASK |
| Frequency | 433.92Mhz |
| Board Memory | 50 pcs remote control |
| Output Voltage | AC 24V |
Feature:
Availble to set pedestrian mode and condominium mode
A button at control for switch on /off power
Single /Three transmitter button control optionals
Adjustable resistance sensitivity
Alarm lamp interface
Adjust auto-closing time
Terminal availble for loop detector ,photocell,push button, keypad , access control equipment etc.
