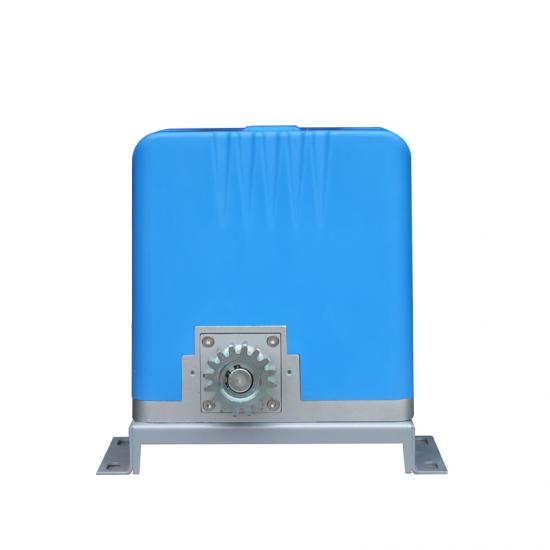

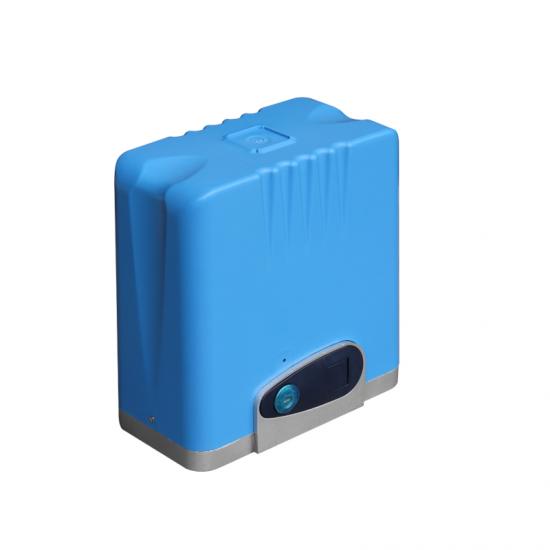

AC sliding gate motor with built in control panel
800kg max gate loading weight
External foundation optional automatic gate opener
Manual release key in case of power supply failure
Reliable spring limit/magnetic limit switch optional
Nice desin,heavy duty working with copper motor ,copper worm gear,
Control board have function for Pedestrian mode and condominium mode
Item No.:
PYM-B01Payment:
TT/PaypalProduct origin:
ChinaColor:
BlueShipping port:
Shenzhen/XiamenLead Time:
10-25daysElectric Motor Automatic Sliding Gate Opener
| Model No | PYM-B01 |
| Rated voltage | 220VAC/110VAC |
| Electronic motor | 220VAC/110VAC |
| Rated motor power | 250W |
| Gear modulus | M=4 |
| Max loading weight | 800KG |
| Open/close speed | 12m/min |
| Driving mode | gear |
| Output speed | 50r/min |
| Output torque(N.m) | 22N.m |
| Limit switch type | Magnetic |
| Max pull force | 1100N |
| Working temperature | -20°C~+55°C |
Function:
Totally integrated electrical mechanical system (excludes racks)
Manual release key in case of power supply failure
All metal gears make it durable and long lasting
Gate auto stop and re-open when an obstacle is encountered
Reliable magnetic and spring limit optional
Auto close time can be adjusted from approximately
Nice desin,heavy duty working with copper motor (many supplier use allumium motor ), copper worm gear,

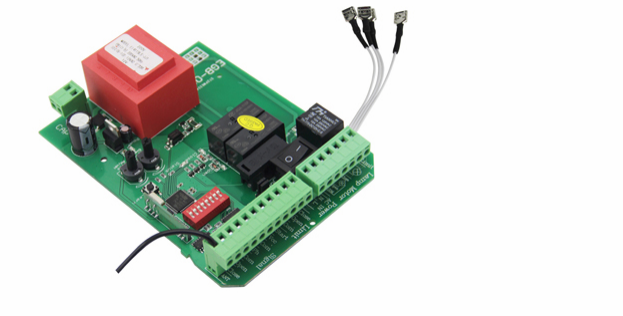

Technial data :
|
Model
|
EGB-02 |
| Voltage | 220V/110V |
| Modulation | ASK |
| Frequency | 433.92Mhz |
| Board Memory | 50 pcs remote control |
| Output Voltage | AC 24V |
Features of the Sliding gate opener :
Availble to set pedestrian mode and condominium mode
A button at control for switch on /off power
Single /Three transmitter button control optionals
Adjustable resistance sensitivity
Alarm lamp interface
Adjust auto-closing time
Terminal availble for loop detector ,photocell,push button, keypad , access control equipment etc.
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
